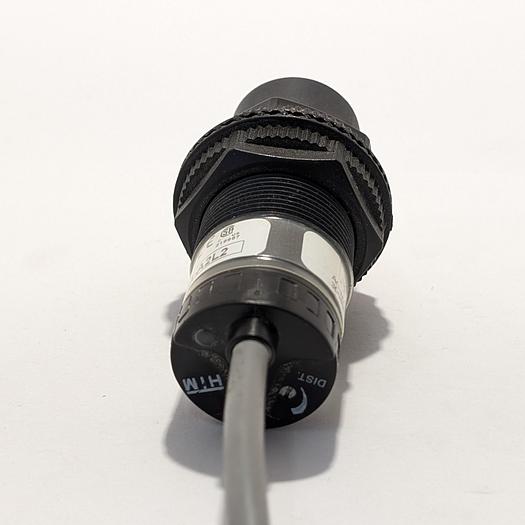

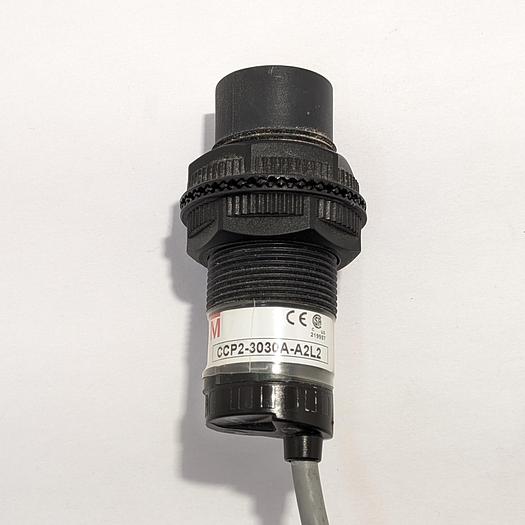

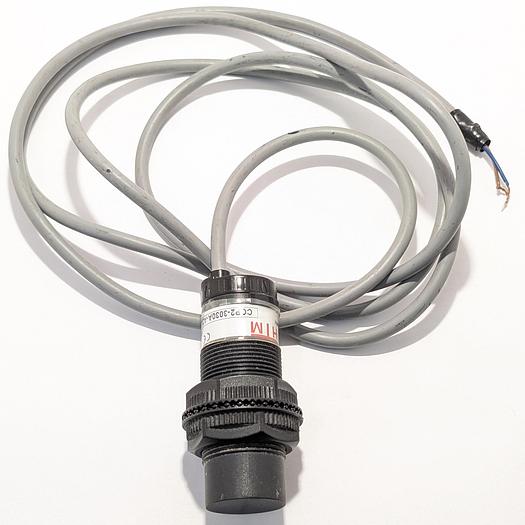

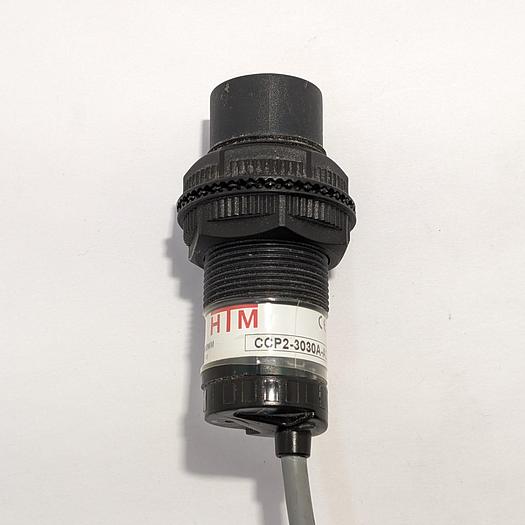

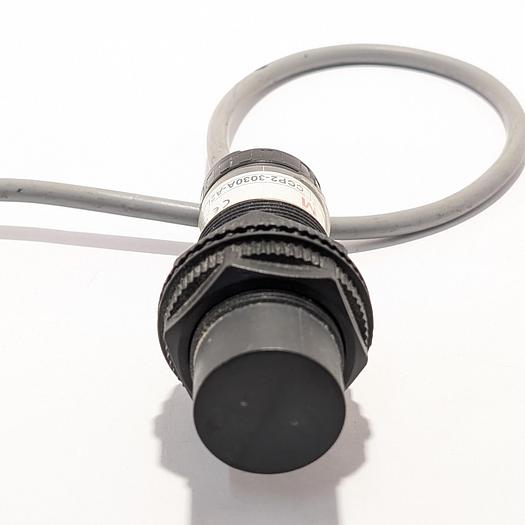

HTM CCP2-3030A-A2L2

Type:

Capacitive Sensor

Shape:

Cylindrical

Diameter:

M30

Sensing Range:

2-30 mm Range

Mounting Style:

Unshielded

Output Type:

AC

Output Function:

Normally Open

Connection:

Pre-Leaded 2 Wire

Connector:

2 m Cable

Body Length:

80 mm

Housing Material:

PBT

Sensing Face Material:

PBT

IP Rating:

IP67

Operating Temperature:

-25 C - +70 C

Operating Voltage:

20-240 V AC

Current Consumption:

<1.8mA

Leakage Current:

<1.8mA

Max Current:

300 mA

Overload Trip Point:

>

Surge Current:

5A (20mS)

Short Circuit Protected:

No

Reverse Polarity Protected:

No

Switching Frequency:

25 Hz

Response Time:

10 ms

EMC Rating:

RFI>3V/m,EFT>1KV,ESD>4KV

Shock/Vibration Rating:

IEC 60947-5-2, Part 7.4.1/IEC 60947-5-2, Part 7.4.2

Weld Field Immune:

No

Weld Spatter Resistant:

No

Description:

M30, 2-30 mm Range, AC, Normally Open

Matching Bracket:

HRAB-30 (Basic) / QT-30 (Quick Release)
