AEVOS VM-100 - V-Mixer
AEVOS VM-100 - V-Mixer
Description

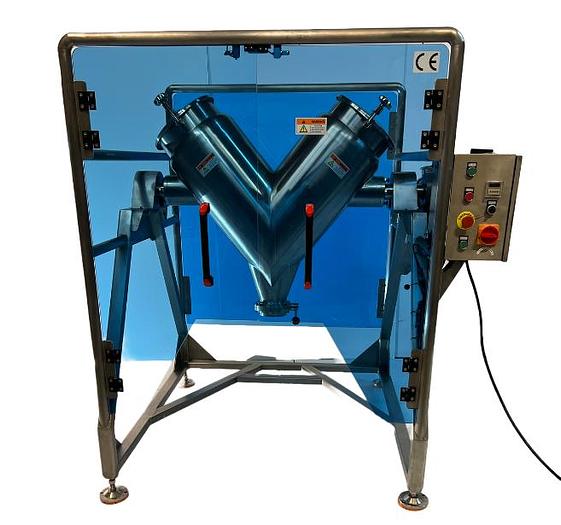

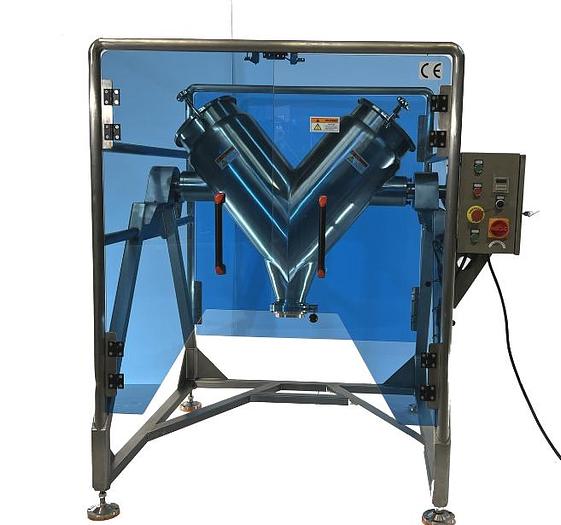

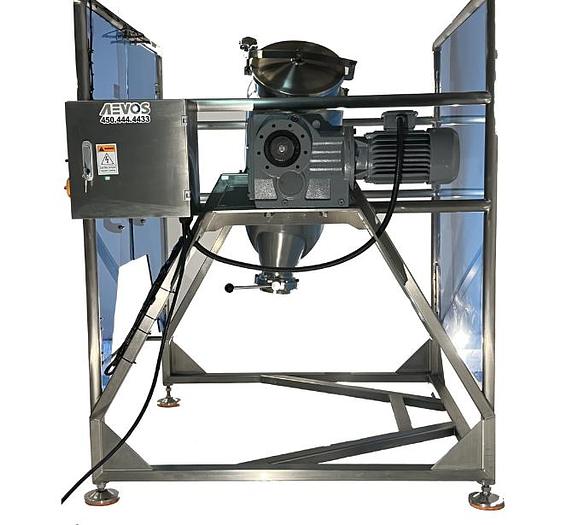

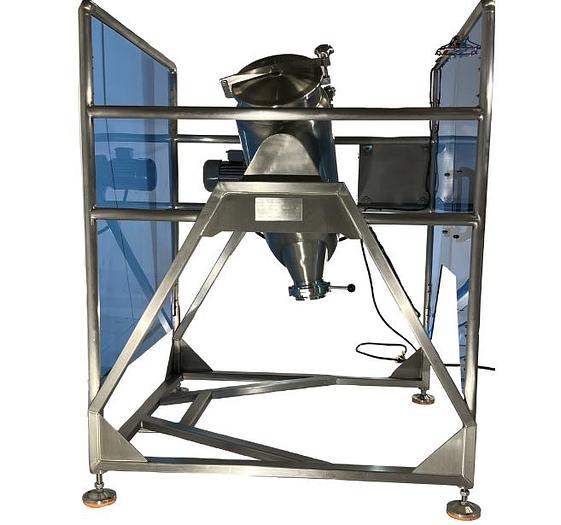

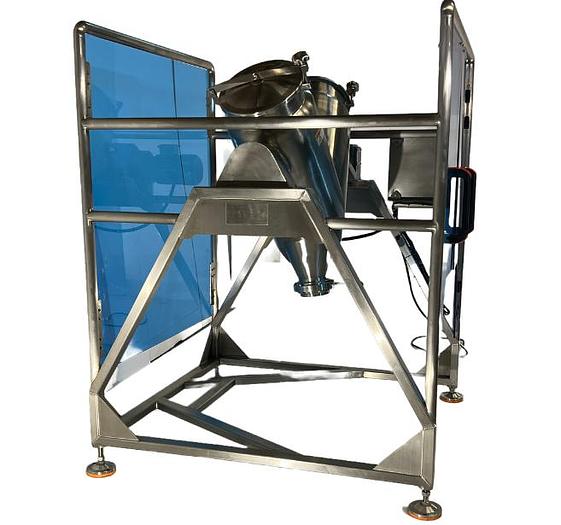

This V-mixer provides an easy and efficient way of mixing dry products (such as powder, granules, pellets) in batch. It consists of two inclined cylinders attached together in the form of a ''V''. Through mechanical transmission, the powder materials in the shell are displaced back and forth, constantly being split and intermixed as the shell rotates to achieve uniformed mixing.
Specifications
| Manufacturer | AEVOS |
| Model | VMIX-100 |
| Condition | New |
| Stock Number | NEW32 |
| Select payment method | Check / Money order |
| Warranty | 1 an (Pièces électriques & mécaniques) |
| Power supply | 208V 3Ph 10Amps 60hz |
| Total capacity | 100L |
| Optimal mixing capacity | 40-60% |
| Contact material | SS304 |
| Rotation speed | 0-16 rpm |
| Timer | 15 min |
| Filling height | 59'' |
| Discharge height | 26'' |
| Cylinder diameter | 13'' |
| Product inlet diameter | 12'' |
| Product outlet diameter | 4.5'' |
| Overall dimensions (L x W x H) | 70'' x 54.5'' x 67'' |
| Weight | 325 lbs |
