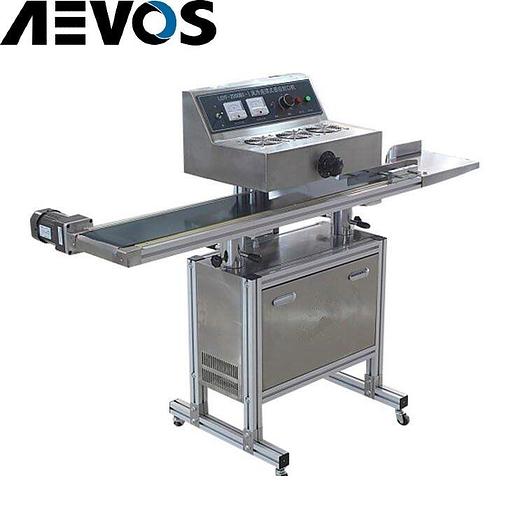

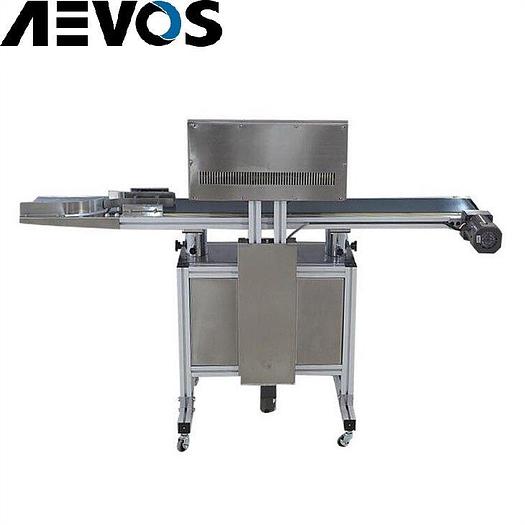

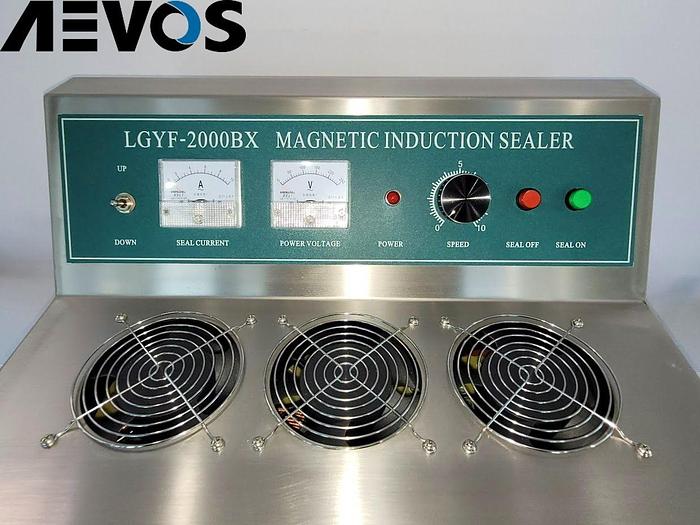

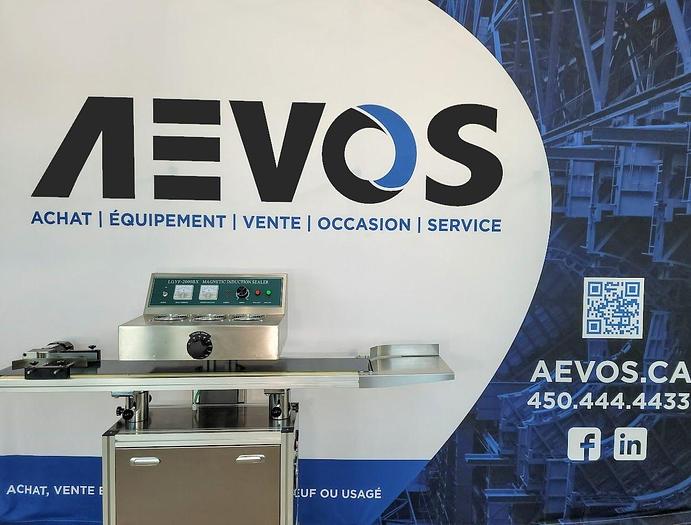

AE-LGYF-2000BX - Air-Cooled Continuous Electromagnetic Induction Sealing Machine

AE-LGYF-2000BX - Air-Cooled Continuous Electromagnetic Induction Sealing Machine

orCall 450-444-4433

Description

Induction sealing creates an airtight seal by passing a corked bottle under the induction sealer in a non-contact process. The system's sealing head produces an electromagnetic field that heats the aluminum liner inside the cap. The hot film in turn melts the polymer coating on the inner seal. Eventually, the heat added to the pressure of the cork, causes the inner seal to adhere to the lip of the container, resulting in an airtight seal. 1 year warranty (electrical & mechanical parts)

Specifications

ManufacturerLGYF-2000BX
ModelLGYF-2000BX
ConditionNew
Stock NumberNEW31
Select payment methodCheck / Money order
Warranty1 an (Pièces électriques & mécaniques)
Power supply220V 1Ph 50/60Hz 2000W 10Amps
Sealing diameter20 to 130mm
Applicable bottle height40 to 400mm
Sealing speed0 to 10 m/min (Depending on bottle format, film material)
Conveyor dimensions (W x L)7'' x 48''
Overall dimensions (L x W x H)61'' x 22'' x 54''
Weight160 lbs
