ENOS EURO BASE - Automatic labeler
ENOS EURO BASE - Automatic labeler
Description

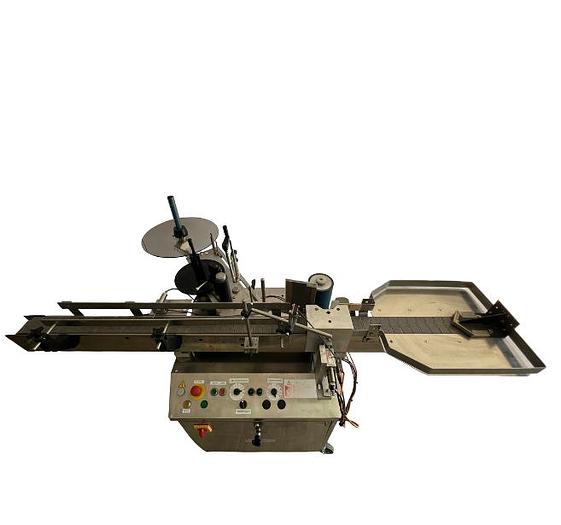

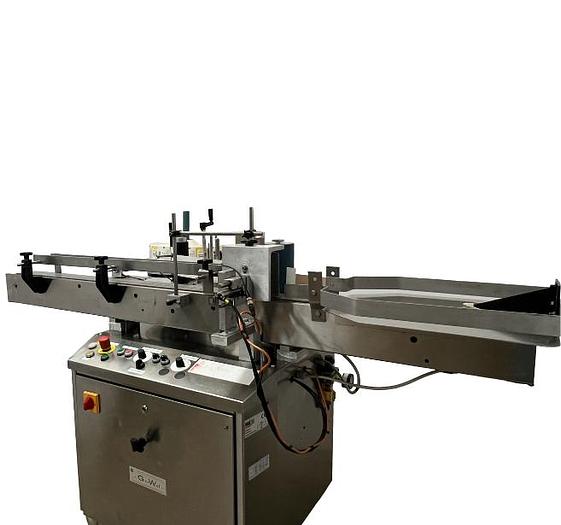

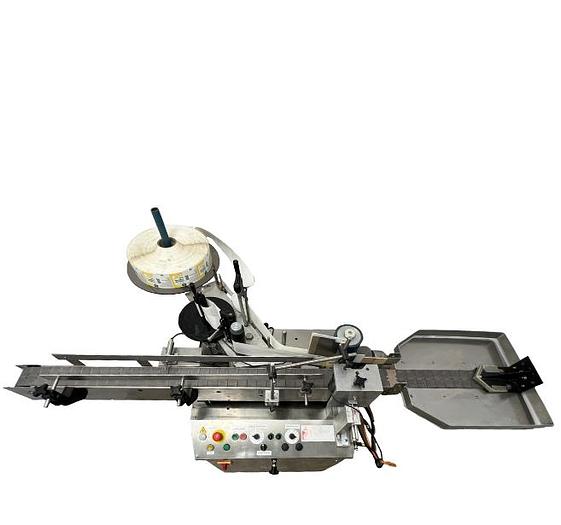

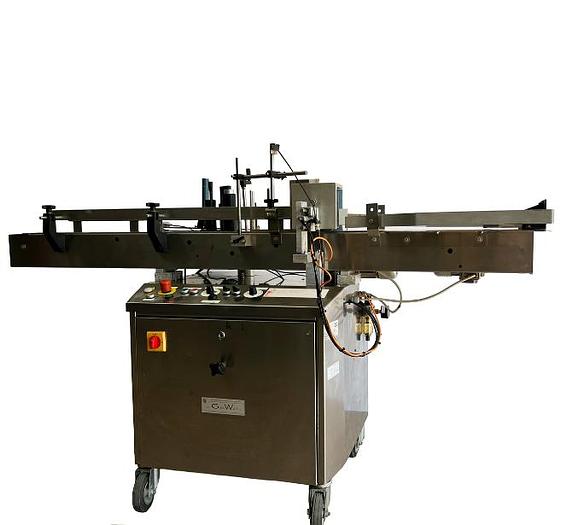

The ENOS EURO BASE model is an ideal machine for applying a label on cylindrical bottles. This machine allows labels to be affixed to all surfaces (plastic, glass, aluminium, etc.). It’s prism system ensures unparalleled precision of application. It also includes an indexer for bottle spacing and a small collection table for a production line usage if needed. Bottle spacing indexer included Production speed : Up to 30 bottles/minute (Depending on bottle size, label length & conveyor speed) On wheels
Specifications
| Manufacturer | ENOS |
| Year | 2007 |
| Condition | Used |
| Stock Number | DP17 |
| Air supply | 1 CFM @ 90 PSI |
| Filling range | EURO BASE |
| Power supply | 208V 3PH 10Amps 60hz |

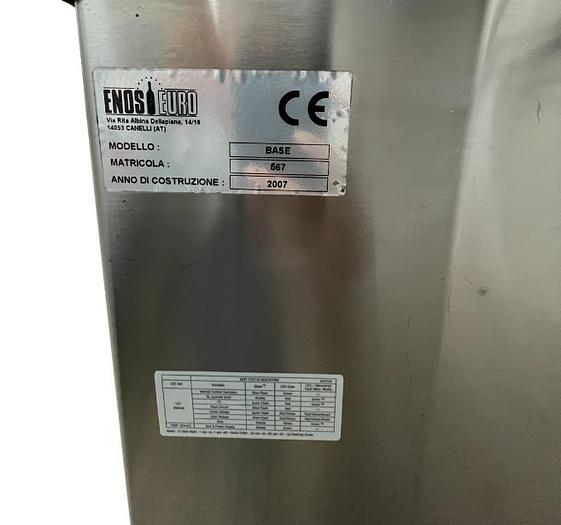

| Serial | 567 |
| Maximum label height | 5'' |
| Maximum label length | 9'' |
| Maximum bottle diameter | 5'' |
| Inner diameter of the label roll core | 3'' (76mm) |
| Maximum outside diameter of the label roll | 14'' |
| Applicable label unwind direction → Outer position | left side first |
| Conveyor dimensions (L x W x H) | 80'' x 4'' x 37'' (Customizable upon request) |
| Overall dimensions (L x W x H) | 80'' x 30'' x 48'' |
| Weight | 350 lbs |
