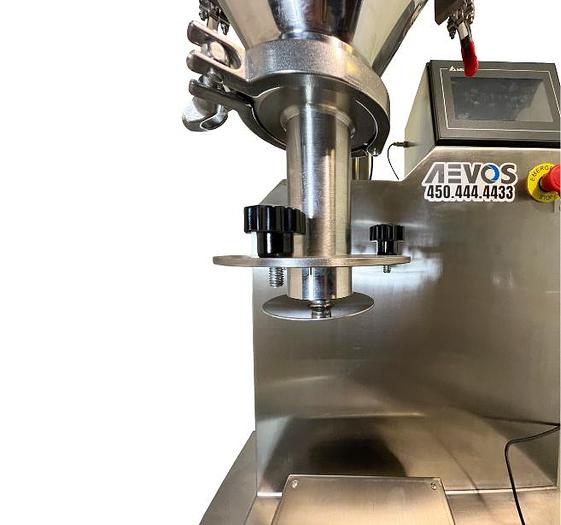

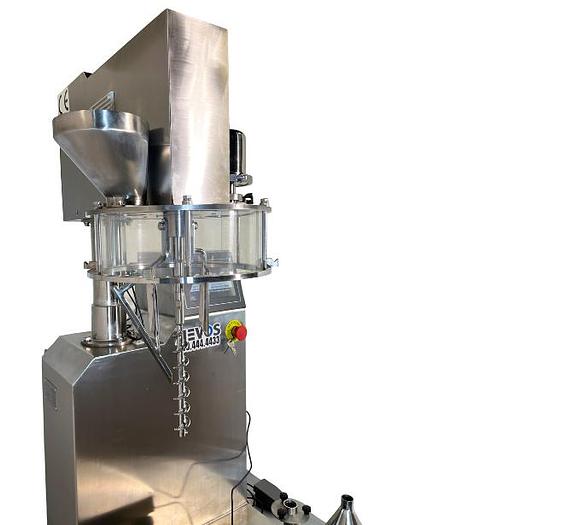

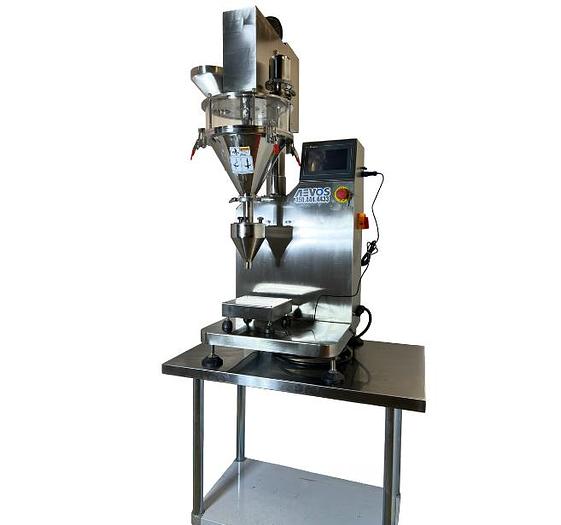

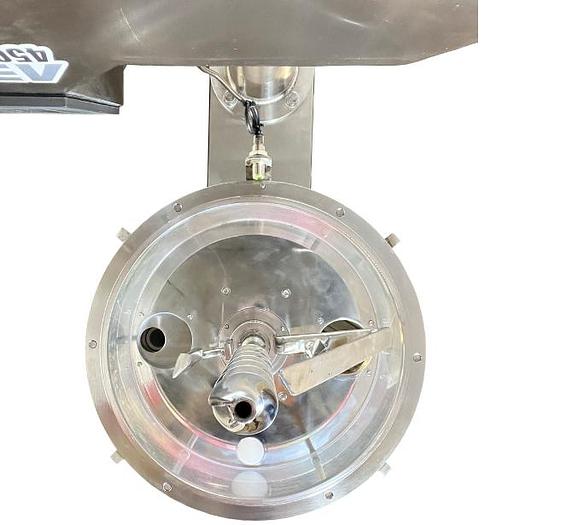

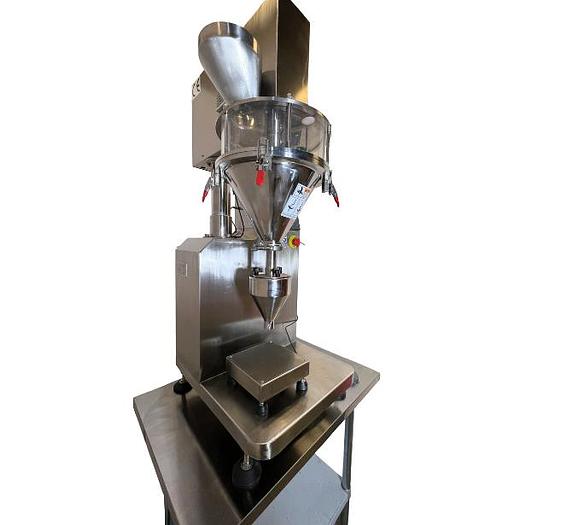

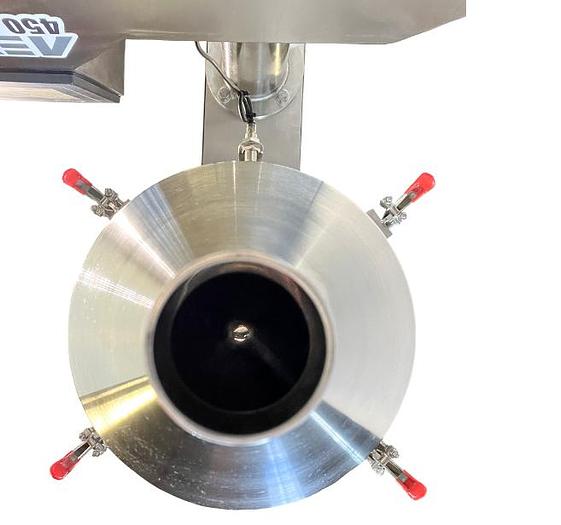

AEVOS AFSA-TT - Semi-automatic tabletop auger filler
AEVOS AFSA-TT - Semi-automatic tabletop auger filler
Description

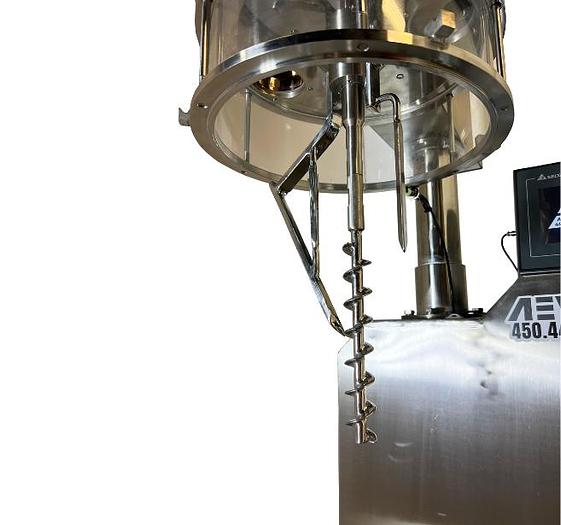

The AFSA-TT allows volumetric filling of powdery and fine-grained products such as sugar, flour, spices, etc. It ensures precise and efficient dosing during your production. This machine is equipped with a servo motor drive for the filling screw, ensuring stable performance. It's scale weight feedback and proportion track to materials, overcomes difficulties of filling weight changes due to materials’ density change.
Specifications
| Manufacturer | AEVOS |
| Model | AFSA-TT |
| Year | 2025 |
| Condition | New |
| Stock Number | NEW47 |
| Power supply | 208V 3Ph 60Hz 950W 5Amps |
| Production speed | Up to 40 cycles/minute (Depending on product density, filling volume and operator speed) |
| Filling accuracy | 98% |
| Includes | 1 set of filling screw and nozzle |
| Available filling screws | (0 - 5g) / (5 - 20g) / (10 - 40g) / (25 - 70g) / (50 - 120g) / (100 - 250g) |
| Available nozzles (OD) | 12mm / 17mm / 25mm / 30mm / 34mm / 40mm / 44mm |
| Hopper capacity | 11 L (13 L total volume) |
| Contact parts | SS304 |

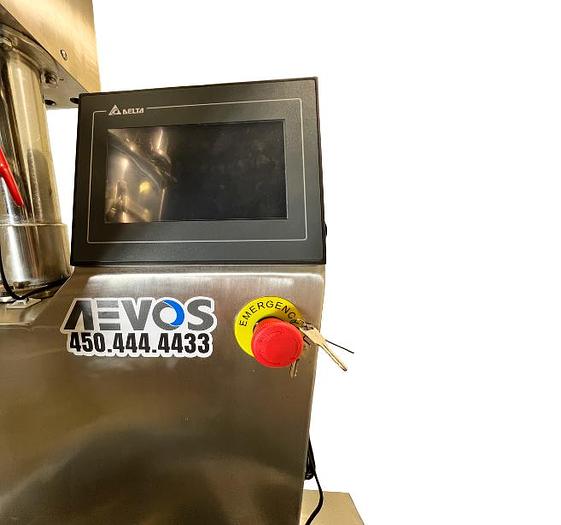

| Programmable PLC | Up to 10 presets |
| Warranty | 1 year (Electric & mechanical parts) |
| Overall dimensions (L x W x H) | 23'' x 20'' x 48'' |
| Weight | 180 Lbs |
